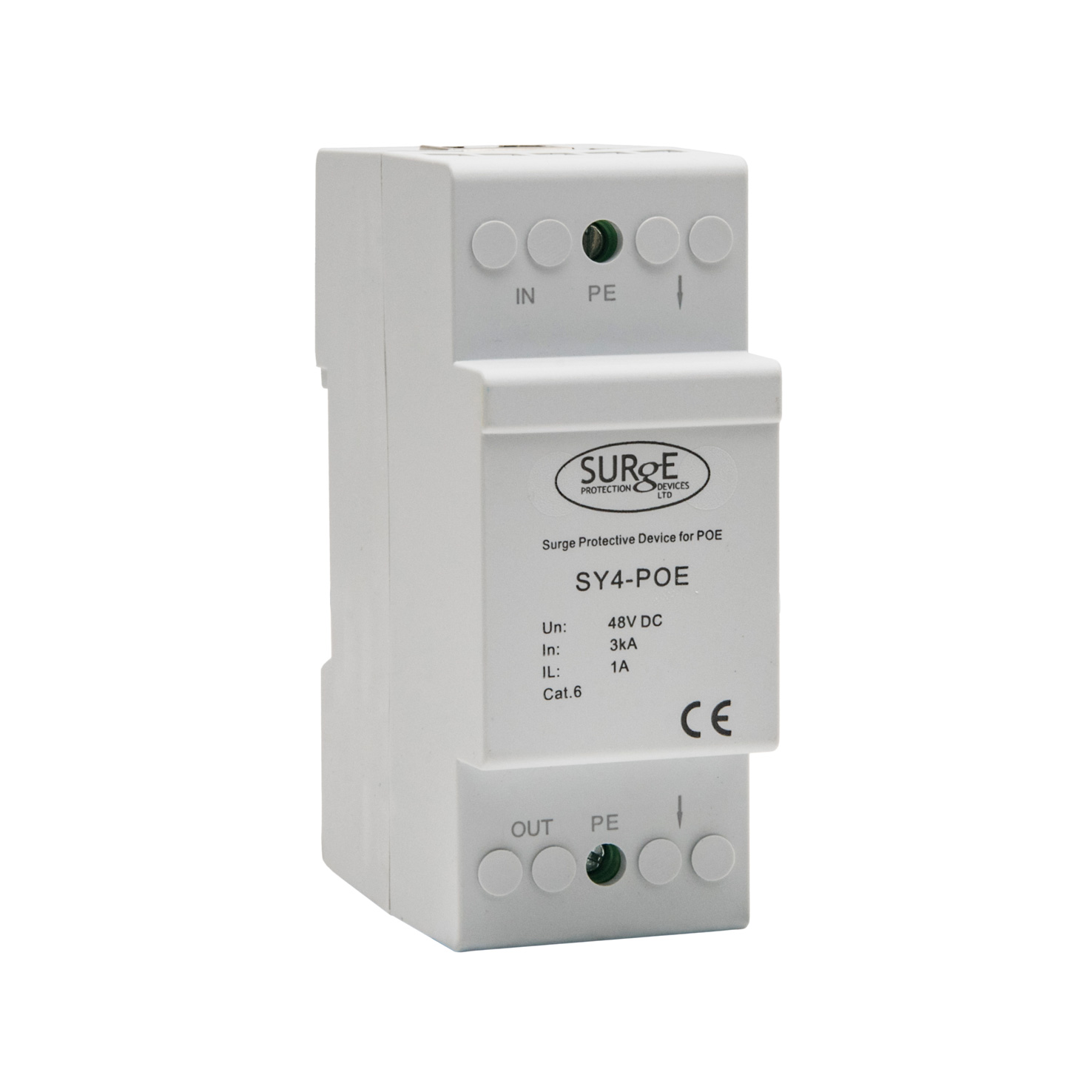

SY4-POE – Power Over Ethernet SPD
£104.00
Type 3 Surge Protection Device for Power Over Ethernet
Maximum 1A current capacity
Suitable for Cat 6 cable
Din rail mountable
Earthing terminal provided on both sides
Combined arrester handles Lightning & Surges
Combined Category D, C, B tested device to BSEN61643
Suitable to protect twisted pair Ethernet networks, including Power over Ethernet (POE)
Power over Ethernet IEEE 802.3 compliant (up to PoE++ / 4PPoE)
RJ45 connections
Connects in series with the network cable near to where it enters or leaves the building
Suitable for systems signalling on up to eight wires of either shielded or unshielded twisted pair cable
Allows protected equipment to continually operate without disturbances
Very low let through voltage / enhanced protection on all lines
Low in line resistance means no impairing of signal strength
