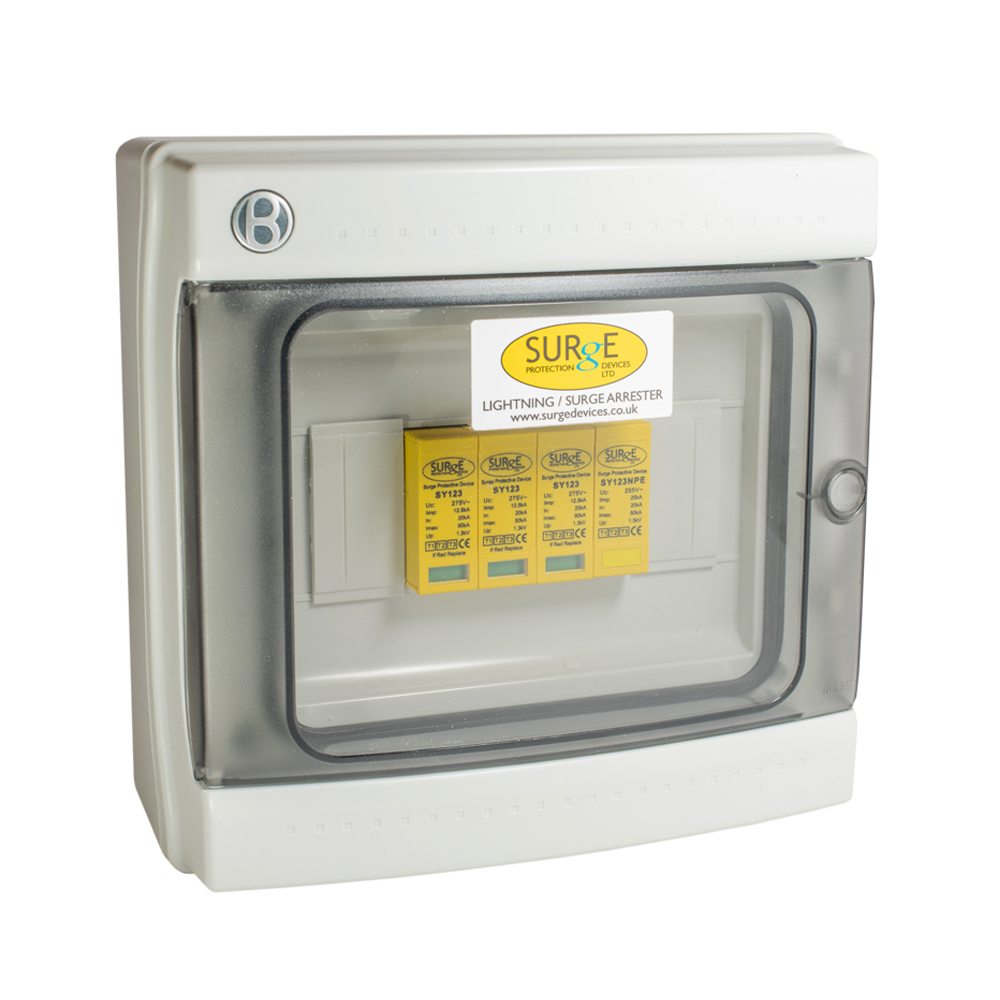

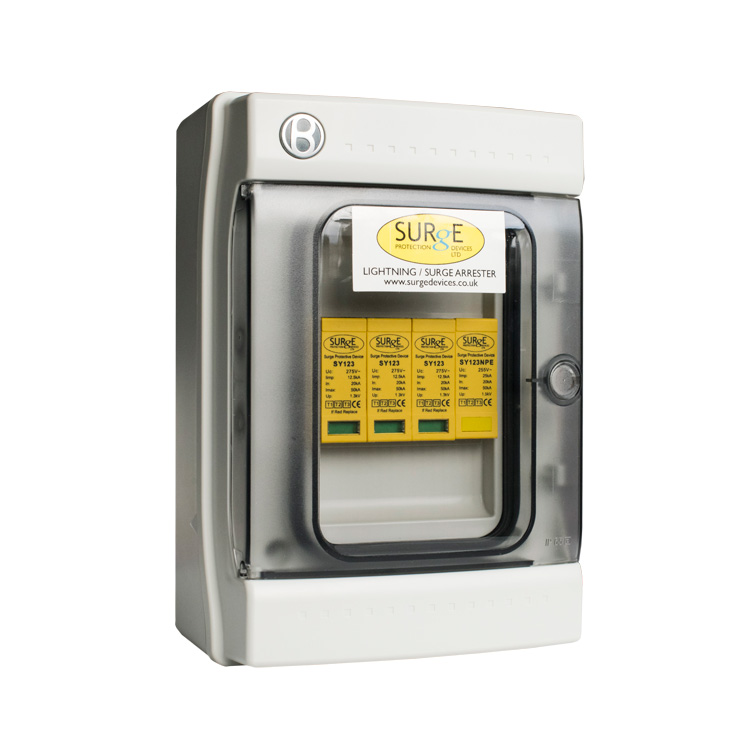

SY12350KA4P/ENC – Type 1+2+3, 50kA, 3 phase, with window indication, complete in IP65 polycarbonate enclosure
£428.00
Lightning protection Level 3, 50kA 10/350μs.
Fully compliant to BSEN62305, BS61643-11 & BS7671.
Combined arrester Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.
Suitable for all installation types (TT, TNC-S & TN-S).
Low let through voltage <1.3kV.
Visual indication of status.
Pluggable replacement modules.
Remote changeover contacts can be linked to BMS, buzzer, light etc.
Din rail mountable.
Minimum backup fuse / MCB 63A.
Recommended cable size 25mm².
Complete in polycarbonate enclosure.
Manufactured in Europe.
Competitively priced against other brands.
Please note: The enclosure pictured may differ from the actual enclosure received due to supply issues. For current enclosure dimensions please ring the office on 01484 851 747.
