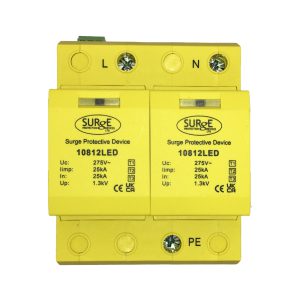

10812/LED/ENC – Type 1+2+3, 50kA (Level 3/4), single phase, all/full mode protection with LED indication, complete in IP65 polycarbonate enclosure
£428.00
Lightning protection Level 3, highest protection level 50kA, 10/350µs.
Enhanced protection to BSEN62305, BSEN61643-11 & BS7671.
Combined arrester Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.
Very low let through voltage between all conductors less than 600V.
Full mode protection, phase to earth, phase to neutral, phase to phase, neutral to earth.
Visual indication of status.
Remote changeover contacts can be linked to BMS, buzzer, light etc.
Will extinguish follow currents after activation.
Internal thermal disconnector.
Din rail mountable.
Minimum back up fuse / MCB 63A.
Recommended cable size 25mm².

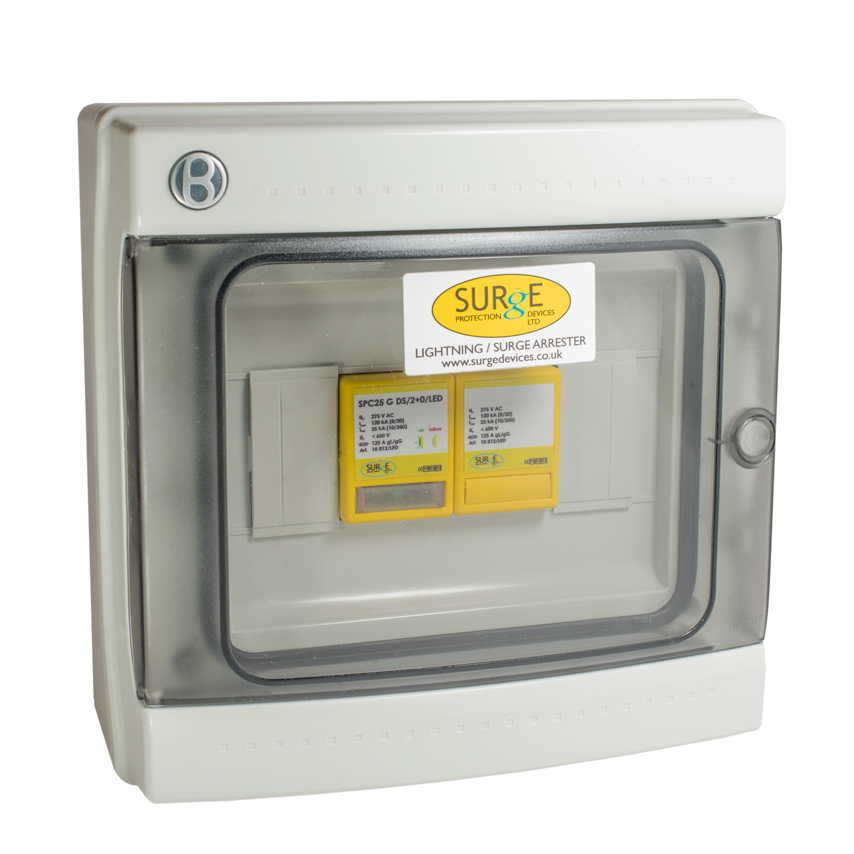

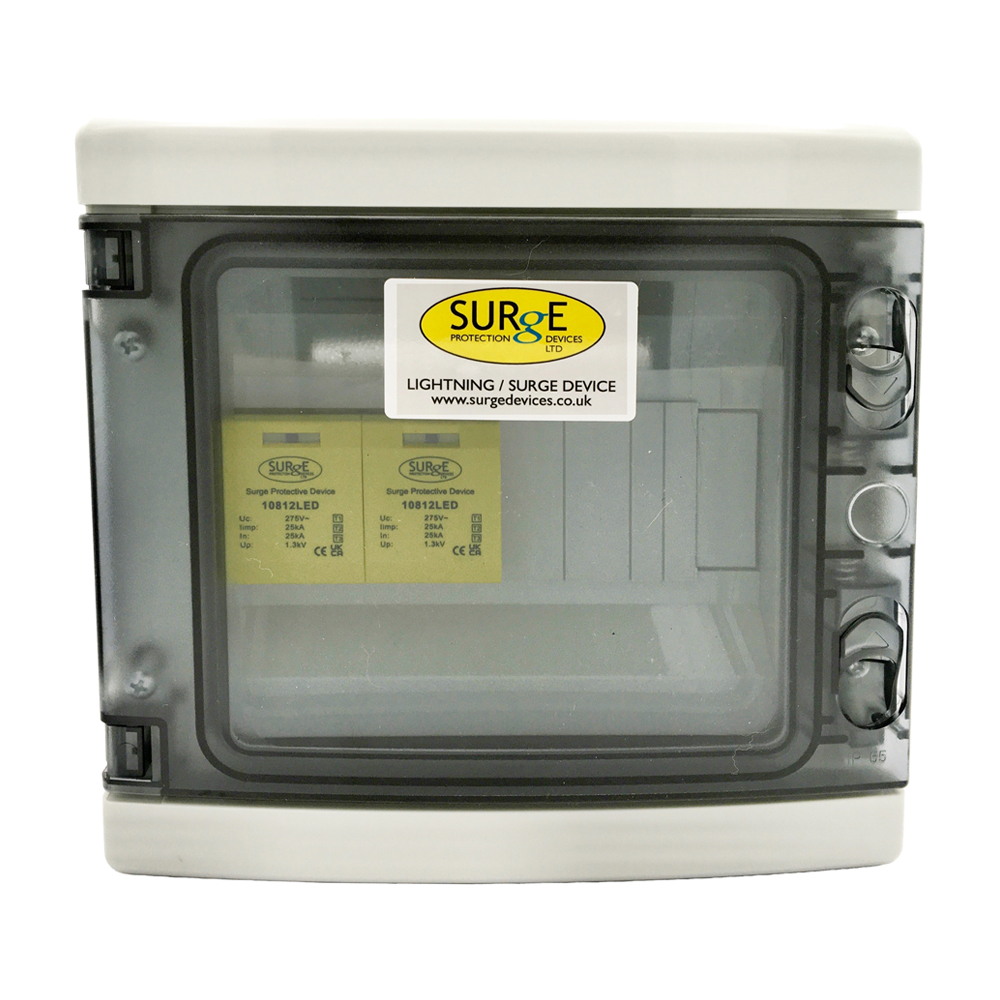

Supplied in a polycarbonate enclosure.
Manufactured in Europe.
Competitively priced against other brands.
Please note: The enclosure pictured may differ from the actual enclosure received due to supply issues. For current enclosure dimensions please ring the office on 01484 851 747.
