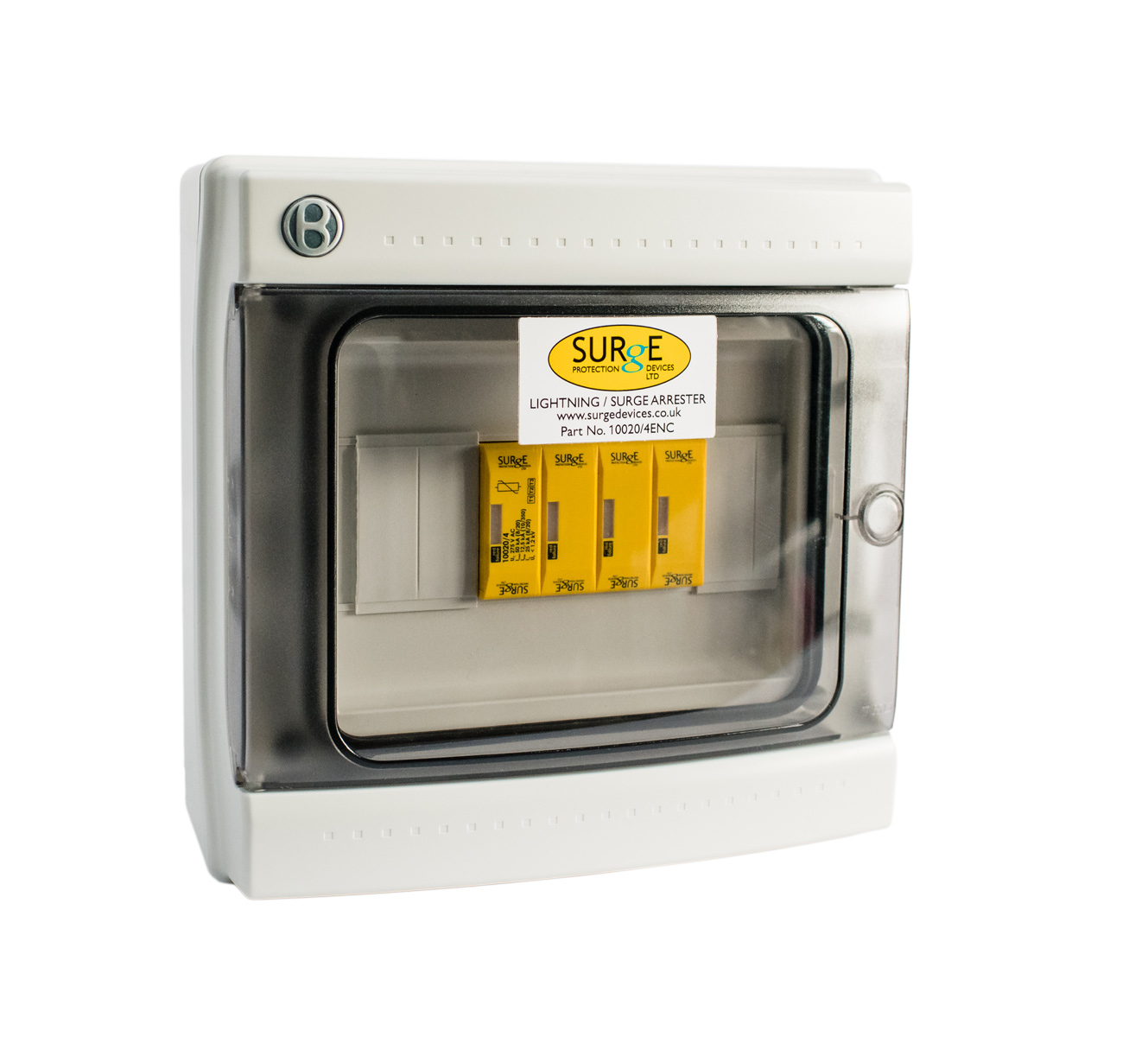

10020/4ENC – Type 1+2+3, 50kA (Level 3/4), 3 phase with indication complete in IP65 polycarbonate enclosure
£428.00
Lightning protection level 3, 50KA 10/350μs.
Fully compliant to BSEN62305, BS61643-11 & BS7671.
Combined arrester Type 1+2+3 can handle direct lightning strikes and protect sensitive electronic equipment.
Low let through voltage <1.2kV.
Visual indication of status.
Will extinguish follow currents after activation.
Remote changeover contacts can be linked to BMS, buzzer, light etc.
Din rail mountable.
Fast response time <25ns.
Minimum backup fuse / MCB 63A.
Recommended cable size 25mm².
Complete in a polycarbonate enclosure.
Manufactured in Europe.
Competitively priced against other brands.

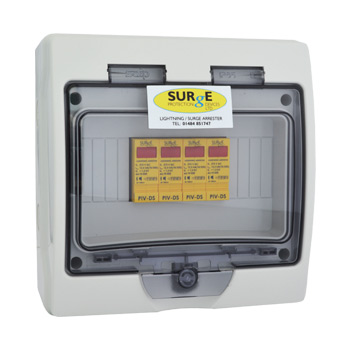

Please note: The enclosure pictured may differ from the actual enclosure received due to supply issues. For current enclosure dimensions please ring the office on 01484 851 747.
